Starting with LTO-8, changes were made to LTO’s backwards compatibility. Previously, LTO drives could read tapes from two generations back and write to tapes from the previous generation. For instance, an LTO-7 drive could read LTO-7, LTO-6, and LTO-5 tapes, as well as write to LTO-7 and LTO-6 tapes. However, this two-generation backward reading compatibility ceased with LTO-8. An LTO-8 drive can read and write only LTO-8 and LTO-7 tapes, without compatibility for reading LTO-6 tapes. Similarly, an LTO-9 drive can read and write LTO-9 and LTO-8 tapes but cannot read LTO-7 tapes.

  • LTO drive generations 1-7 are able to read tapes from two generations prior and are able to write to tapes from the prior generation.
  • LTO-8 drives can read and write to LTO-7 and LTO-8 media, including
    LTO-7 Type M.
  • LTO-9 drives can read and write to LTO-8 and LTO-9 media only.

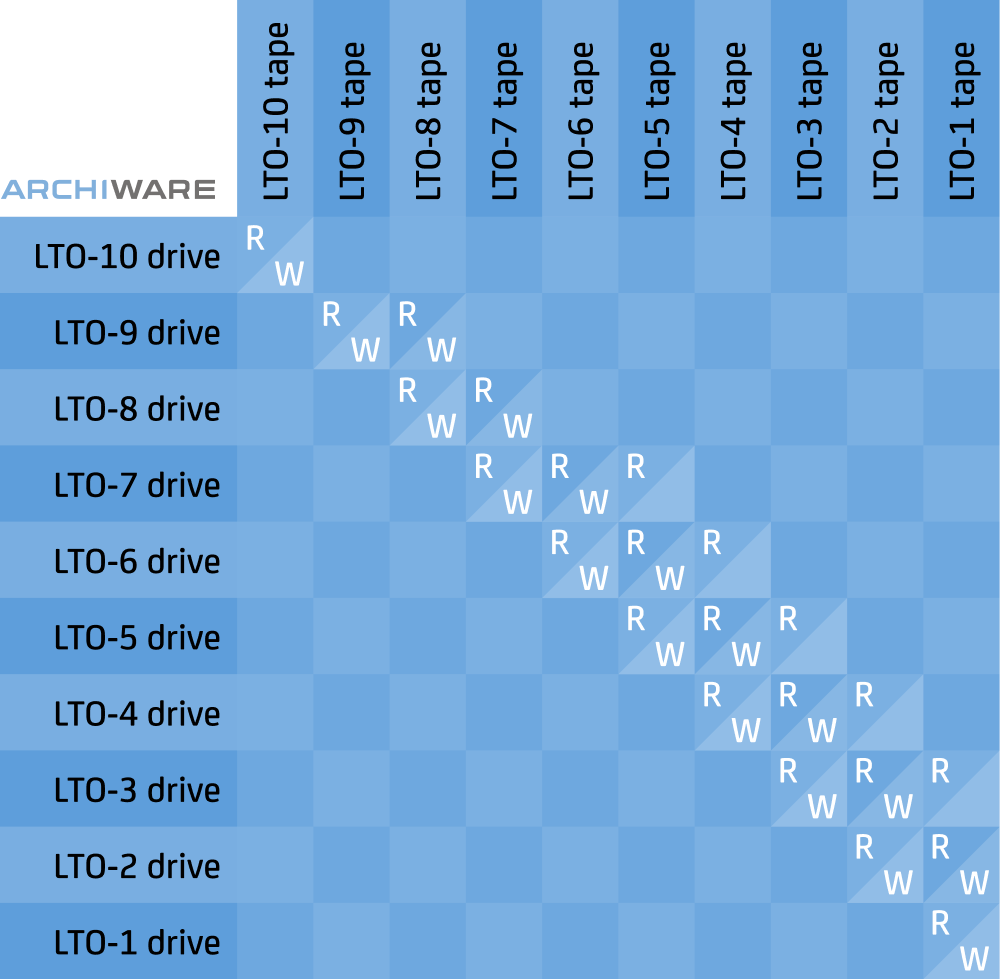

In the table below, we summarise the situation.

LTO Drive GenerationCan ReadCan Write
LTO-1LTO 1LTO 1
LTO-2LTO 2,1LTO 2,1
LTO-3LTO 3,2,1LTO 3,2
LTO-4LTO 4,3,2LTO 4,3
LTO-5LTO 5,4,3LTO 5,4
LTO-6LTO 6,5,4LTO 6,5
LTO-7LTO 7,6,5LTO 7,6
LTO-8LTO 8,7 (including
LTO-7 Type M)
LTO 8,7 (including
LTO-7 Type M)
LTO-9LTO 9,8LTO 9,8
LTO-10TBATBA

Archiware’s P5 software is unique in supporting all LTO tape generations and hardware vendors devices, using its own internal drivers. There’s no dependency on third party software. P5 Backup provides disaster-recovery backup to LTO and P5 Archive provides long-term cold storage for your data on LTO. Click those links to learn more.
